Pharmaceutical Glass Packaging
>
|
| Place of Origin | China |
| Brand Name | FourStar |
| Certification | CE, ISO |
| Model Number | 1ml~30ml Form D |

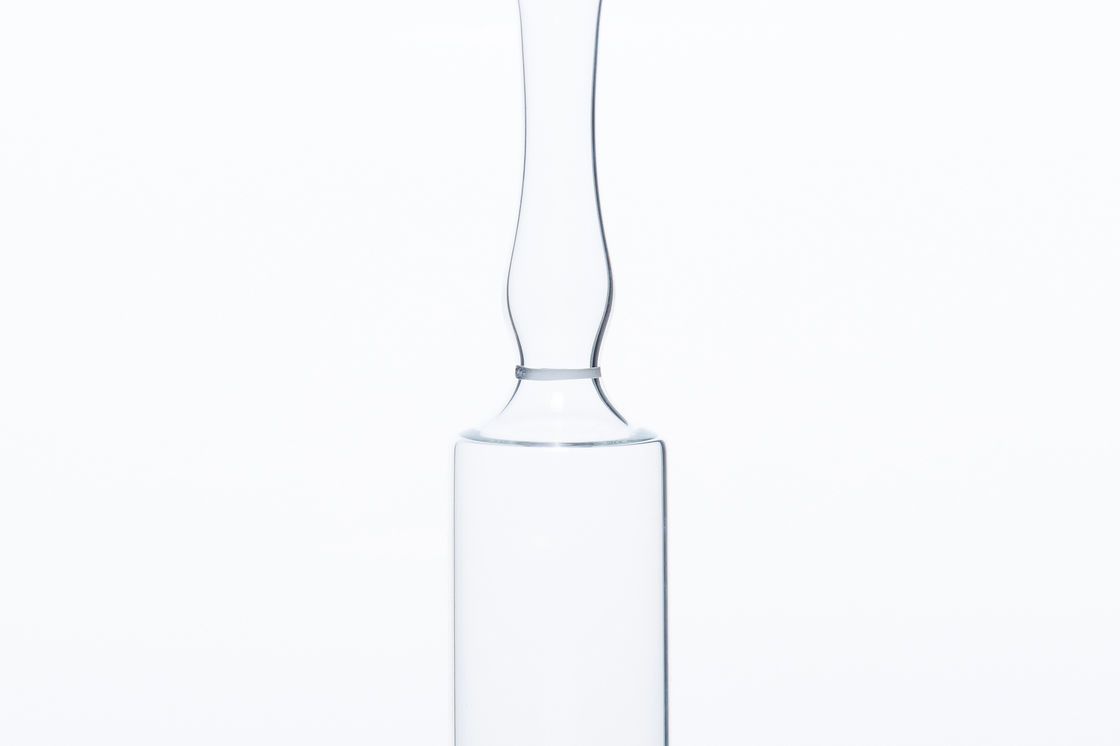

Form D Glass ampoules (1ml-30ml)
Company Brief Introduction:
FourStar Group is one of the biggest pharmaceutical glass manufacturer with two professional production bases in China, located at Cangzhou city of HeBei Province, established in the year 1988, Occupied land: 133,200 square meters workshop.
We always looks up technology improvement, in fiscal 2015 increased technical R&D input, the capital of which got 7% of sales income for technical innovation. Four-star R&D resulted neutral borosilicate glass tubing (expansion coefficient: 5.0) with huge investment in 2006. We designed by ourselves the full process from raw material preparation to melting, tube-drawing, up to products packaging and loading into warehouse. We also imported the most advanced ampoule-making machines in the world from Europe to support our excellent products. In addition, our company has gotten 38 patents, 2 of which are invention patents. More16 patents are under application. We still enhance the management of know-how and technology updating to build our comprehensive competition.
Currently,with more than 800 employees and 75 technicians and engineers, 33 R&D members.
Now we have 5 glass furnaces and 78 production lines. Which is in the leading position in China.
Our annual production capacity exceeds 20 million glass vials,30 million Ampoules, 26 million pharmaceutical glass tubing. And 40% of them are amber glass tubing.
Products information:
Glass Ampoule Specification information:
| Module Size (ml) | External Diameter | Height | Thickness | ||||||||||||||
| Body Diameter(d1) | Neck Diameter(d2) | Bubble Diameter(d3) | External Diameter(d4) | Color Dot Diameter(d5) | Overall Height(h1) | Bottom to Neck High(h2) | Bottom to High Points(h3) | Bottom to Shoulder High(h4) | Flange Thickness(s1) | Bottom Thickness(s2) | |||||||
| Basic Size | Limit Deviation | Basic Size | Limit Deviation | Basic Size | Limit Deviation | Basic Size | Limit Deviation | Basic Size | Limit Deviation | Basic Size | Limit Deviation | Basic Size | Min. | Min. | Min. | ||
| 1ml | 10.75 | ±0.15 | 6.5 | ±0.5 | 8.5 | ±0.5 | 6 | ±0.35 | 2.0±0.5 | 60 | ±1.0 | 25.5 | ±0.5 | 47 | 21 | 0.5 | 0.3 |
| 2ml | 10.75 | ±0.15 | 6.5 | ±0.5 | 8.5 | ±0.5 | 6 | ±0.35 | 72 | ±1.0 | 37.5 | ±0.5 | 57 | 33 | 0.5 | 0.3 | |
| 3ml | 12.75 | ±0.15 | 6.5 | ±0.5 | 8.5 | ±0.5 | 6 | ±0.35 | 82 | ±1.0 | 39.5 | ±0.5 | 62 | 35 | 0.5 | 0.3 | |
| 5ml | 14.75 | ±0.15 | 7.0 | ±0.5 | 9.0 | ±0.5 | 7 | ±0.35 | 90 | ±1.0 | 46.5 | ±0.5 | 68 | 41 | 0.55 | 0.4 | |
| 10ml | 17.75 | ±0.20 | 7.5 | ±0.5 | 9.5 | ±0.5 | 7.1 | ±0.35 | 102 | ±1.0 | 62 | ±1.0 | 87 | 55 | 0.6 | 0.4 | |
| Remark:The same ampoule must fit d1＞d3＞d2＞d4 | |||||||||||||||||
| Item: | Glass Ampoule |
| Material: | Glass |
| Volume: | 1ml ~30ml |
| Color: | Clear, Amber. |
| Cap Type: | Other |
| Application: | Medical liquid and so on. |
| Appearance: | Frost, silk screening, painting, electroplating and so on. |
| Packaging: | Paper box packing, shrink wrap, Private label logo... |
| LTE : | 5.0, 7.0. |
| Service: | OEM & ODM are welcome. |
Production Line Pictures:
Warehouse:
Why Choose Us :
1. Providing free design service and free sample If the customer need.
2. OEM service: we can make customized bottles based on your samples bottle or drawing.
3. Custom service and multiple choice for meet different custom demand ,such as the color ,size ,capacity, printing craft, printed color of the vial.
4.Fast delivery: about 5 days according to the order quantity after payment.
5.Prompt reply your email or inquiry within 24 hours
6.Providing matched sealing parts for vials, such as caps, sprayers, glass dropper, rubber stopper and so on.
7.From Planning, Design, Manufacture, Printing, Filling, Packaging and Shipments of through-train services
Payment Terms :
T/T, L/C.
What We Sell :
1.Glass Vials
2.Perfume Bottles
3. Dropper Bottles
4. Ampoules
5. Essential Oil Bottles
6.Tubular Glass Vials
7. Glass Bottle with Screw Cap
8. Glass Droppers/Glass Pipettes
9. Glass Test Vials for Perfume Sample or Other Liquid
10.Pharmaceutical vial, Injection vial, Antibiotic vial, Liquid medicine bottle, Powder medicine bottle.
